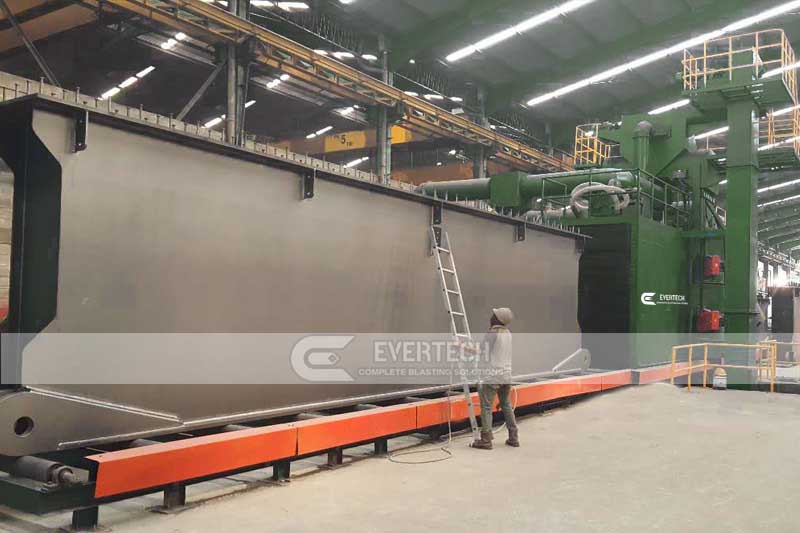

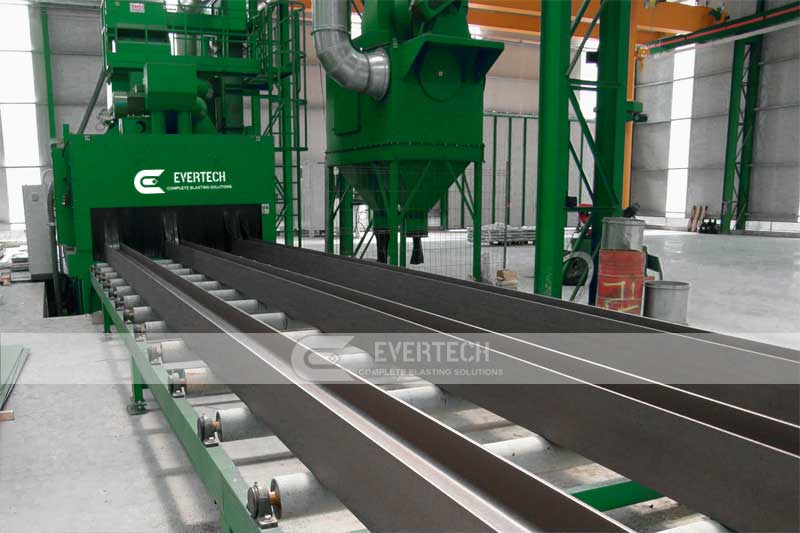

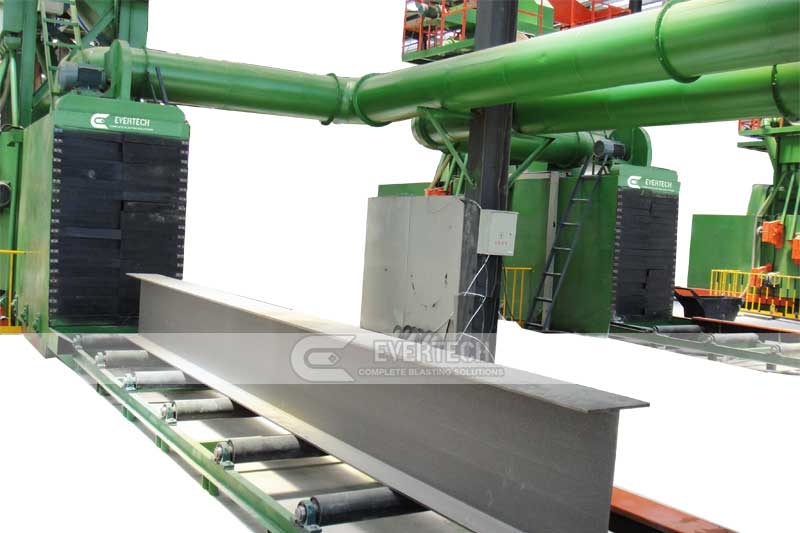

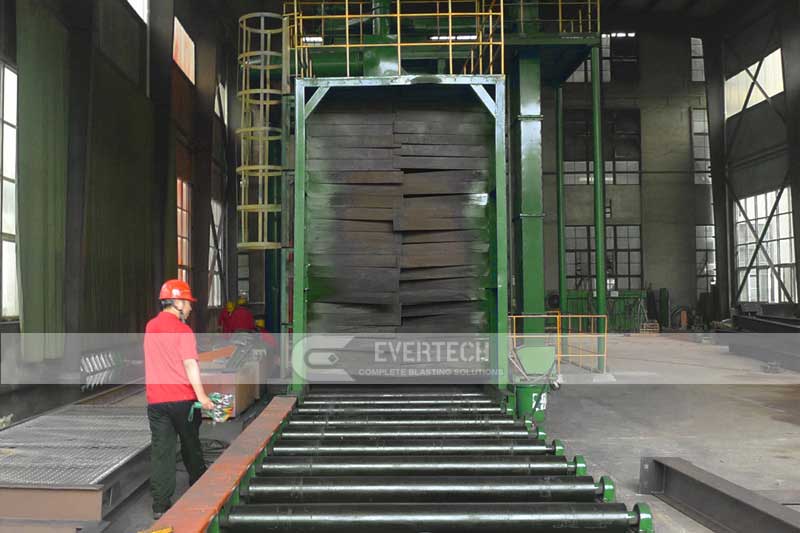

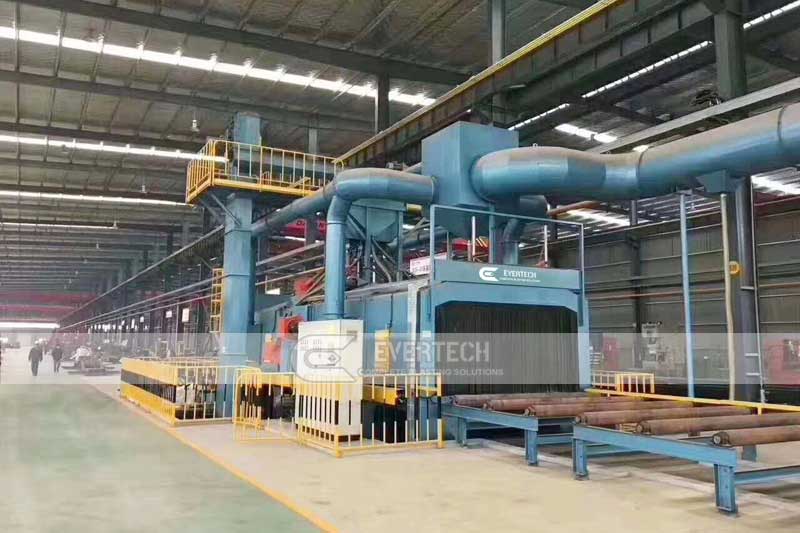

Beams, Profiles, Steel Structure Shot Blasting Machine

The new ultra-compact, fully integrated, exceptionally efficient shot blast machine will fit any steel fabricators space and budget requirements. The exceptionally efficient turbine design allows fab

Model Type X
Price Negotiation
Rating 4.0 /5 based on 28 ratings and reviews
Operation Method Automatic
Brand name Evertech
Place of Origin Qingdao, China
Certification CE, ISO, UL
Process Continuous
Industry Medium/Heavy
Delivery Time Within 10 weeks

Product Description

Features and benefits

-The blast chamber is made of manganese steel for long life and is further reinforced with replaceable manganese liner plates. This well sealed chamber stops rust and dust particles from entering the shop.

-The heavy duty, variable speed chain driven internal roller conveyor is easily connected to extension input and output conveyors. Transfer speed is easily adjusted to achieve the desired surface finish.

-The conveyor speed monitor automatically controls the starting and stopping of the shot blast action.

-The complete abrasive recycling system comprises collection hopper, screw conveyors, two bucket elevators, air separator, drop-out box, maintenance platform and high-performance blast turbines with abrasive flow-control units.

-The high velocity abrasive blow-off unit at the cabinet exit keeps the shot in the system and out of your shop.

-Within the abrasive recycling system, a large highly efficient air wash separator prolongs shot life and a drop-out box removes coarse particles to avoid destruction of filter elements.

-All inspection ports are easy to access and a maintenance platform is standard.

-The simple maintenance requirements, the reduced abrasive consumption and reduced energy consumption all add up to a significant reduction in operating costs.

-A central electrical cabinet provides complete control of the unit with ammeter display for control of turbines, working and blasting hour counters, lighted control switches, fault indicator lamps, speed controller, master switch and emergency stop switch.


Application

-Shot blast machines for steel plates and sections.

-Shot blast machines for tubes and pipes.

-Shot blast machines structural steel work and fabrications.

-Shot blast machines in-line with automatic painting systems for plates and all types of sections

-Shot blast machines for aluminium extrusions and profiles.

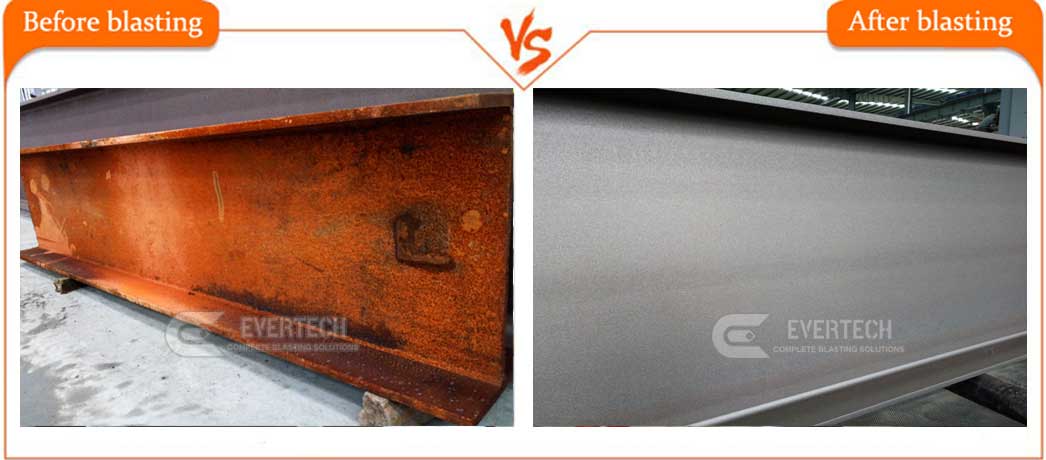

Contrast



Key Parts Introduction

  • Powerful Blast Turbines

    Lower finishing time

    up to 77% higher blasting power and freeing up of new capacity.

    Low energy consumption

    up to 25% cost savings and fulfillment of important environmental guidelines.

    Low consumption of consumables

    up to 30% cost savings on abrasives and replacement parts.


  • Abrasive Separator Features & Benefits

    -Effectively removes dust and debris from the blast stream

    -Extends the life of the blast wheels

    -Allows abrasive to be recycled resulting in lower costs of consumables

    -Evertech may recommend either an airwash or magnetic separator with airwash depending on your specific operation and the type of abrasive being used.

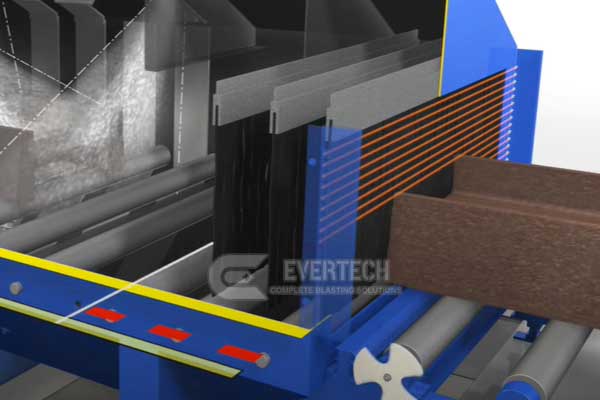

  • Photoelectric sensor system

    -2 sets photoelectric sensor system are located at the inlet and outlet the chamber, grating density can be selected according to the size of the workpiece, used in pairs.

    -The workpeice reach inlet of chamber, the photoelectric sensor system will send signal to computer then the machine will start to do the blasting work, and it will automatic stop after the workpiece out of the blasting zone. That will avoid the blast turbines work when the blasting chamber without workpiece, extend the service time of blasting chamber, and let energy cost saved max 30.



  • Electrical control cabinet

    -Using Siemens PLC and touch screen

    -Using Delta or BEST converters

    -Use CHINT or Schneider brand low-voltage electrical components

    -Using shot blasting time controller

    -Using ADE aerodynamic components

    -Flow detection ammeter

    -lamp

    -1 set of special constant temperature air conditioning (optional)
